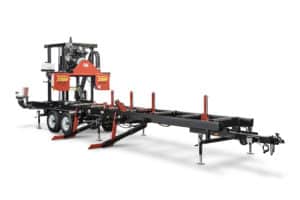

The TimberKing 2200 combines all of TimberKing’s latest sawmill innovations with the 75 Year TimberKing tradition of building simple, rugged machines to stand up to years of high-production sawing. The 2200 is perfect for operations needing more production than the Model 2000 mill but which may not need the 2400’s massive capacity.

49HP KUBOTA FOUR CYLINDER DIESEL ENGINE gives most power and torque in class. Motor provides all the muscle you need to power through even the biggest logs.

Standard Computer Setworks cuts board after board to specific thickness you select with the flip of a switch.

Hinged Blade Wheel Covers for quick, easy blade changes.

Massive Cutting Throat dwarfs the competition. 34" between the guide rollers, 20" clearance above the blade, 39" max clearance above the log deck gives you the capacity to easily handle even the biggest logs.

Electric Blade Clutch comes standard, blade engages with the flip of a switch.


Greaseable 3" Blade Guide Rollers
greaseable bearings and large diameter dramatically increase blade and bearing life.

Hydraulic Roller Toe Boards let you get the best boards from tapered logs.

Standard Greaseable Steel Blade Guides work with large hardened steel rollers for maximum blade rigidity.

Electric Blade Clutch comes standard, blade engages with the flip of a switch.

Hydraulic Roller Toe Boards let you get the best boards from tapered logs.

Optional Debarker cuts a clean path for blade – increases blade life and cut accuracy.

TimberKing direct lube system applies TimberKing lubricants in a thin film directly onto the blade. EXCLUSIVE gravity-feed system with no motors or small parts to fail.

4-Post Carriage Support System eliminates blade deflection, guarantees consistent carriage-to-bed alignment. Twice the blade support of standard cantilever mills, four times the support of “single mast” mills.

Hydraulic Chain Drive Cutting Head provides dependable, solid-state blade feed…eliminates slippage of cable-drive systems.

Hydraulic Log Loader with twin, 5-ton rams, 1" thick steel loading arms, self-attenuating supports, 7,000 lbs. capacity!

High-speed hydraulic dogging system allows you to remain at control panel. One lever moves powerful spike in and out. A second lever moves spike to the perfect height for every cut.

Standard Ceramic Blade Guides
work with large hardened steel rollers for maximum blade rigidity.

Heavy Duty Industrial Energy Chain binds hydraulics in a coat of protective armor…safe from abrasion and damage. Lines are tucked along side of machine, can’t get caught on over-hanging limbs, branches or gateways.

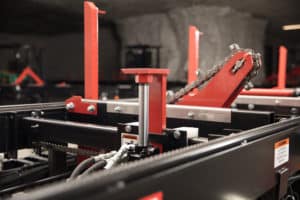

Hydraulic Chain Log Turner lets you easily turn logs in both directions for perfect positioning.

4 Hydraulic Vertical Log Stops the same dependable design we’ve been using for years.

9 ROCK SOLID REASONS

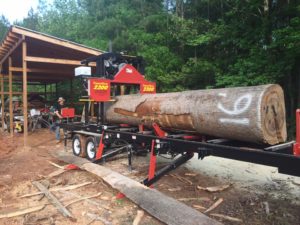

Conquers monster logs up to 24' long x 39" diameter
1 4-Post Head & Twin-Beam Cutting Deck are all steel for a lifetime of straight cuts. 4-Post Head has massive support at each corner. Twin Beam Cutting Deck gives you 200% of the support single beam decks give.
2 Electric Blade Clutch – Flip of a switch engages and disengages blade. This feature comes standard - costs hundred extra on other brands!

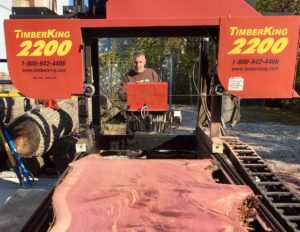

3 39" Capacity, 33" Cutting Throat – The 2200 features the widest cutting throat of any major manufacturer’s mill. 2200 will cut straight through the center of a 33" diameter log…will easily handle logs up to and beyond 39" in diameter.

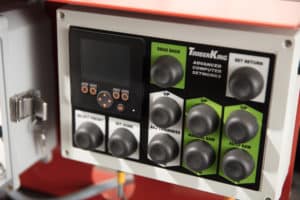

4 Available Computer Setworks – The latest technology maximizes yield from every cant, boards are perfectly dimensioned, cut after cut after cut.
5 The Human Touch – When you call TimberKing a human being answers and helps get you to the right place.  Our sales-people are on salary -- not commission -- which means they're not trying to make a "quick sale." They give you good honest information to help you find the right machine for your needs.
6 Full Hydraulics – Hydraulic blade feed, blade up/down, log loaders, dual-action log clamp, log stops, chain log turner, toe boards all come standard.
7 Solid Steel Hinged Blade Covers – Blade changes are a snap with the 2200’s convenient hinged covers. Solid steel construction eliminates tear-through danger of plywood covers found on other brands.
8 Protected Hydraulic Lines are tucked safely in heavy-duty industrial energy chain, eliminates pinch-point wear and tree-branch abrasion common with over-head hydraulic lines.
9 Strongest, Longest Warranty Protection – We’re so confident in the rugged construction of the 2200 mill we back it up with TimberKing’s exclusive 30-Day Money Back Guarantee, 2-Year Limited Mechanical Warranty, and 5-Year Limited Cutting-Deck Warranty.
