SIMPLY THE VERY BIGGEST & BEST BANDMILL MADE IN AMERICA!

At last – the size, mass, and raw power
super-pros need

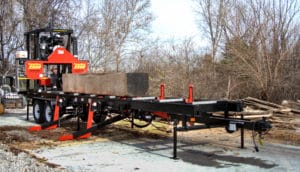

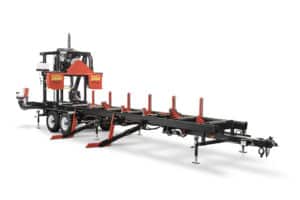

Our smaller TK mills are excellent machines. But if you’re thinking BIG, think about the new TimberKing 2500. Weighing in at over 3 tons, it’s the biggest, boldest, and best mill made in America.

Why so big?

Because high-end, super-professional operations require all the capacity they can get. Plus, lots of local circle mills won’t take logs this big – so prices on huge logs can be low… yet the wood that comes out of them is worth just as much!


And – let’s face it – there are those who won’t buy anything less than the very biggest, best, baddest machinery. If that describes you, you’ve just found your ultimate mill.

59HP 4-Cylinder  Kubota Diesel Engine provides all the muscle you need to power through even the biggest logs. Cutting rates in 12” thick oak of up to 60 fpm.*

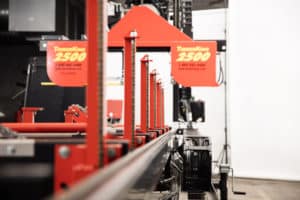

4-Post Carriage Support System eliminates blade deflection, guarantees consistent carriage-to-bed alignment. Twice the blade support of standard cantilever mills, four times the support of “single mast” mills.

Massive Cutting Throat dwarfs the competition. 34.5” between the guide rollers, 16” clearance above the blade, 36” max clearance above the log deck gives you the capacity to easily handle even the biggest logs.

Computer Setworks cuts board after board to specific thickness you select quickly and accurately.

Hinged Blade Wheel Covers for quick, easy blade changes.


Greaseable 3" Blade Guide Rollers
greaseable bearings and large diameter dramatically increase blade and bearing life.

Electric Blade Clutch comes standard, blade engages with the flip of a switch.

Hydraulic Roller Toe Boards let you get the best boards from tapered logs.

Optional Debarker cuts a clean path for blade – increases blade life and cut accuracy.

TimberKing direct lube system applies TimberKing lubricants in a thin film directly onto the blade. EXCLUSIVE gravity-feed system with no motors or small parts to fail.

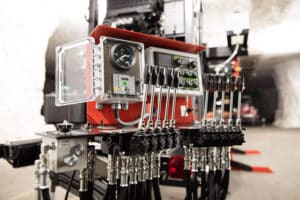

Hydraulic Swing Command Post give full and flexible view of cutting operations. Hydraulic controls are direct drive for smooth, variable control...eliminates jerky on/off found with electric-control hydraulics.

Hydraulic Log Loader with twin, 5-ton rams, 1” thick steel loading arms, self-attenuating supports, 8,500 lbs. capacity!

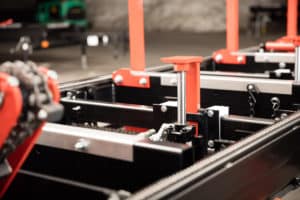

High-Speed Dual Hydraulic Dogging System allows you to remain at control panel. One lever moves powerful spikes in and out. A second lever moves spikes to the perfect height for every cut.

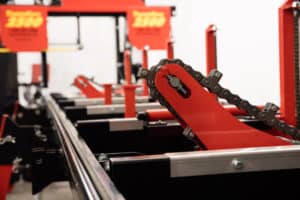

Dual Hydraulic Bi-Directional Chain Log Turner let you easily turn logs in both directions for perfect positioning.

Hydraulic Chain Drive Cutting Head provides dependable, solid-state blade feed…eliminates slippage of cable-drive systems.

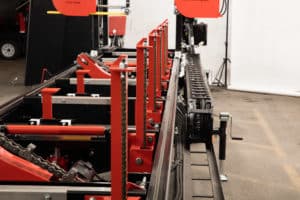

6 Hydraulic Vertical Log Stops - Massive 2x2 steel stops stand up to even the biggest logs. This proven TimberKing design has since become industry standard.

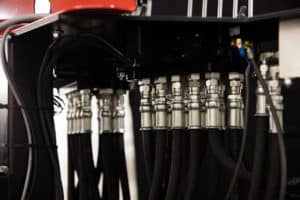

Heavy Duty Industrial Energy Chain binds hydraulics in a coat of protective armor…safe from abrasion and damage. Lines are tucked along side of machine, can’t get caught on over-hanging limbs, branches or gateways.

Six 2,000-lb sidewind jacks come standard, provide maximum stability and fast, easy leveling.

10 BUILT-LIKE-A-TANK FEATURES
Make the 2500 the Super-Pro King of Them All!

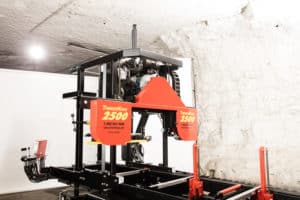

1 4-Post Head & Twin-Beam Cutting Deck are all steel for a lifetime of straight cuts. 4-Post Head has massive support at each corner. Twin Beam Cutting Deck gives you 200% of the support single beam decks give.
2 Electric Blade Clutch – Flip of a switch engages and disengages blade. This feature comes standard - costs hundred extra on other brands!
3 39" Capacity, 34.5" Cutting Throat – The 2500 features the widest cutting throat of any major manufacturer's mill. 2500 will cut straight through the center of a 34" diameter log...will easily handle logs up to and beyond 39" in diameter.
4 Computer Setworks – The latest technology maximizes yield from every cant, boards are perfectly dimensioned, cut after cut after cut.
5 The Human Touch –When you call TimberKing a human being answers and helps get you to the right place.  Our sales-people are on salary -- not commission -- which means they're not trying to make a "quick sale." They give you good honest information to help you find the right machine for your needs.
6 Full Hydraulics – Hydraulic blade feed, blade up/down, log loaders, 2 dual-action log clamps, log stops, 2 chain log turners, toe boards all come standard.
7 Solid Steel Hinged Blade Covers – Blade changes are a snap with the 2500's convenient hinged covers.
8 Protected Hydraulic Lines are tucked safely in heavy-duty industrial energy chain, eliminates pinch-point wear and tree-branch abrasion common with over-head hydraulic lines.

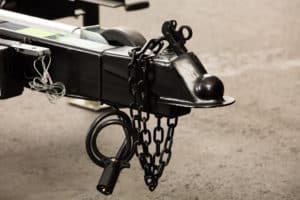

9 Tandem Axle Transport Package – Two axles provide plenty of support and positive traction for the massive 2500 mill. Electric brakes on both axles for maximum stopping power.
10 Strongest, Longest Warranty Protection – We're so confident in the rugged construction of the 2500 mill we back it up with TimberKing's exclusive 30-Day Money Back Guarantee, 2-Year Limited Mechanical Warranty, and 5-Year Limited Cutting-Deck Warranty.
