NEW! 1220 WITH THE TALL & WIDE CAPACITY YOU HAVE ASKED FOR!
The 1220 is the most rugged personal mill we know of. In a marketplace packed with off-shore mills, the toughness of the Made-in-USA 1220 shines through. The NEW TW version cuts up to 35.5” inches wide, but just as important it’s got 16” above the blade. That means you’ll cut right through the center of logs up to 32” in diameter! Compare to “shorty” competitors who have as little as 10” above the blade!
Industry-Best Big 3 Super-Structure with Solid-Welded 4-Post Head, Solid-Welded Sectional Twin-Beam Log Deck, and Solid-Welded Big Beam Power Core. Logs lock in place with Threaded-Rod Log Clamp against fully-adjustable log stops. Air-craft cable feed – or disengage and push by hand. Plus all the “extras” come standard: Massive Cut Throat, Electric Blade Clutch, Greasable Blade Guides, Operator-Height Command Post.
Call for a shipping quote. All mill prices are FOB Kansas City.

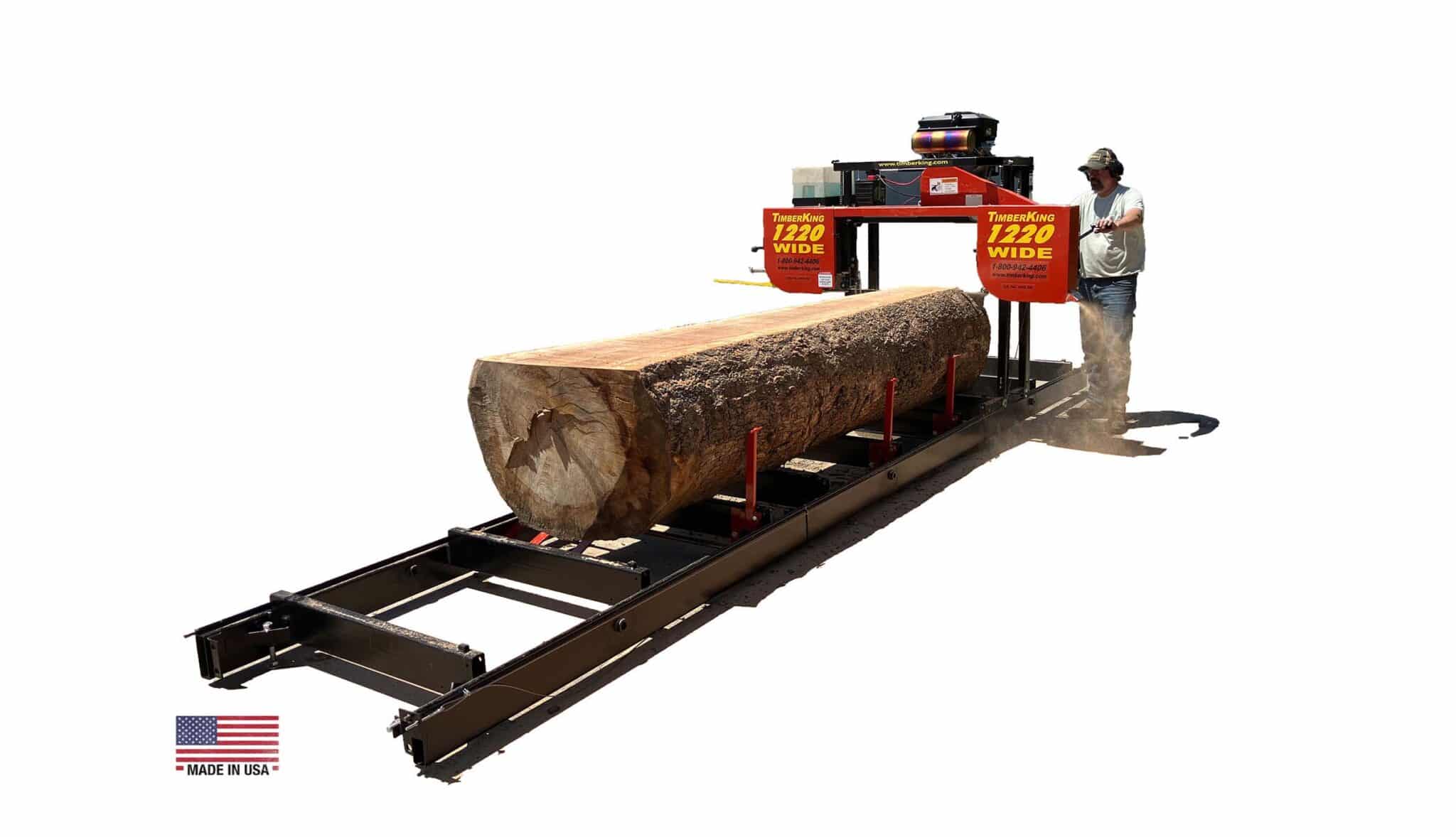

TimberKing 1220TW
Original price was: $12,495.00.$11,995.00Current price is: $11,995.00.
with Instant Rebate for Cash Buyers
FOB Kansas City, MO
Features
Massive Big 3 Super-Structure. You get the same solid-welded features used on TimberKing’s larger, industrial-duty mills.
Massive Solid-Welded Steel Cutting Deck with 9 2×6 Box Beam welded cross members for maximum strength.
V-Twin Made in USA Electric-Start Engine has plenty of power for “muscle in reserve.” (Diesel & Electric Avail.)
Made in USA. Big-3 Superstructure and all fabricated parts are Made in USA: cut, shaped, welded, painted and assembled right here in Kansas City. Engine also Made in USA.
Hinged Blade Covers make blade changes fast and easy.
Hair-Line Cut Depth Scale allows precision cutting to the 32nd of an inch!
5-Gallon Lubrication Reservoir keeps blade running smooth, keeps dust down.
12 Levelling Feet come standard with the TimberKing 1220.
Greaseable Guide Rollers the same rollers we use on our 1400 and 1600 mills.
Mechanical Moveable Guide Roller
Big Capacity: handle logs up to 39.5” in diameter with a 35.5” width of cut. Sixteen inches above the blade … mill cuts straight through the center of logs up to 32” in diameter.
Double-Crank System One crank controls height of the cutting head; second one moves the cutting head through the log. We use AIRCRAFT CABLE for the feed: it’s far better than ropes and “hand-push” systems on other mills.
Hand Crank Log Clamp instantly lock biggest logs into place for rock-solid hold during cutting.
Specifications
| Cutting Head | 4-Post, Solid Welded |
| Cutting Deck | Twin-Beam, Solid Welded Sections |
| Power Core | 4x4 Beam, Solid-Welded |
| Standard Motor | V-Twin, Made in USA (9HP Diesel avail.) |
| Machine Weight | 1,400 lbs. |
| Max Width of Cut | 35.5" |
| Max Log Diameter | 39.5" |
| Max Cut Length | 17' 9" (Extendable) |
| Clearance Above Blade | 16" |
| Machine Width | 8’ 3” |
| Machine Length | 20' |
| Log Deck Rails | Welded 2x6 Box Beam Steel |
| Log Deck Cross Beams | Welded 2x6 Box Beam Steel |
| Blade Clutch | Electric (Standard) |
| Control Height from Ground | 41" |
| Moveable Guide Roller | Manual |
| Command Post | Walk-Along |
| Direct-Action Hydraulic System | |
| Feed System | Manual, Aircraft Cable |
| Blade Up/Down | Manual |
| Bi-Directional Chain Log Turner | |
| Log Stops | Manual |
| Log Clamp | Manual |
| Highway Transport | Optional |
| Fine Adjust Outriggers | |
| Money-Back Guarantee | 30-Day No Questions |
| Warranty |
3-Year Limited |
| Cutting Deck Warranty | 5-Year Limited |
Specifications refer to standard configuration mills and are subject to change without notice.
Warranty
30-Day, No-Risk Money-Back Guarantee. You take no risk! When your 1220 mill arrives, put it to work for 30 days completely at our risk. Use it as much as you like. Make absolutely certain that it is everything you expected. If you are not entirely pleased and satisfied, simply notify us and return it within 30 days (shipping pre-paid by buyer) for a full refund of the mill’s purchase price.
3-Year Limited Mechanical Warranty. Your TimberKing 1220 and all attachments have been built with the best materials and components and carefully inspected at our factory. We will, at any time within three years from the date of delivery, repair or replace (our option) any part which is defective in materials or workmanship. This includes parts not directly manufactured by TimberKing, Inc. such as bearings, electrical systems, and hydraulic components. Obvious wear parts such as blades, belts, and tires, of course, are not included. Call or write for details.
5-Year Limited Log Deck Warranty. In addition to TimberKing’s Industry-Best 3-year warranty, the log deck weldment on 1220 mills is covered for a full 5 years against defective materials or workmanship. Call for details.
